Palatov D9

The D9 is an evolution of our proven D1/D4 platform, utilizing state of the art electric powertrain from Cascadia Motion, fast-swap modular battery from ModBatt, the latest triple-shock suspension first used on D2EV, and advanced 'air skirt' aero shared with the new D8.

Wheelbase: 72"

Length: 120"

Width: 68"

Height: 35"

Weight: 1,500lb with driver

Seats: 1

Motor/Inverter: Cascadia IM-375, 350+KW (470+hp)

Battery: ModBatt fast swap modular, 12-30KWh, 800V

Gearbox: none

Drivetrain: AWD chain drive, adaptive torque split

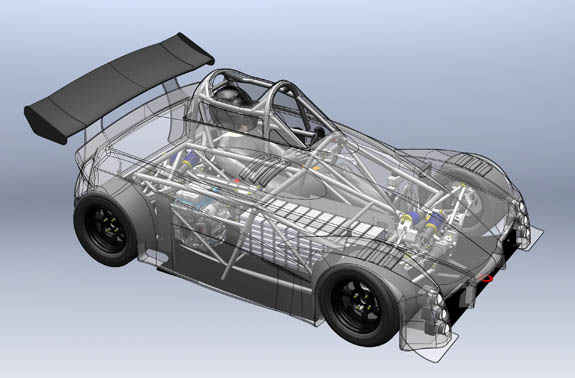

Construction: Chromoly steel tube space frame, halo cockpit, fully independent pushrod triple shock suspension F/R

Wheels/Tires: 13x8, 215/530-13

Bodywork: custom carbon composite
